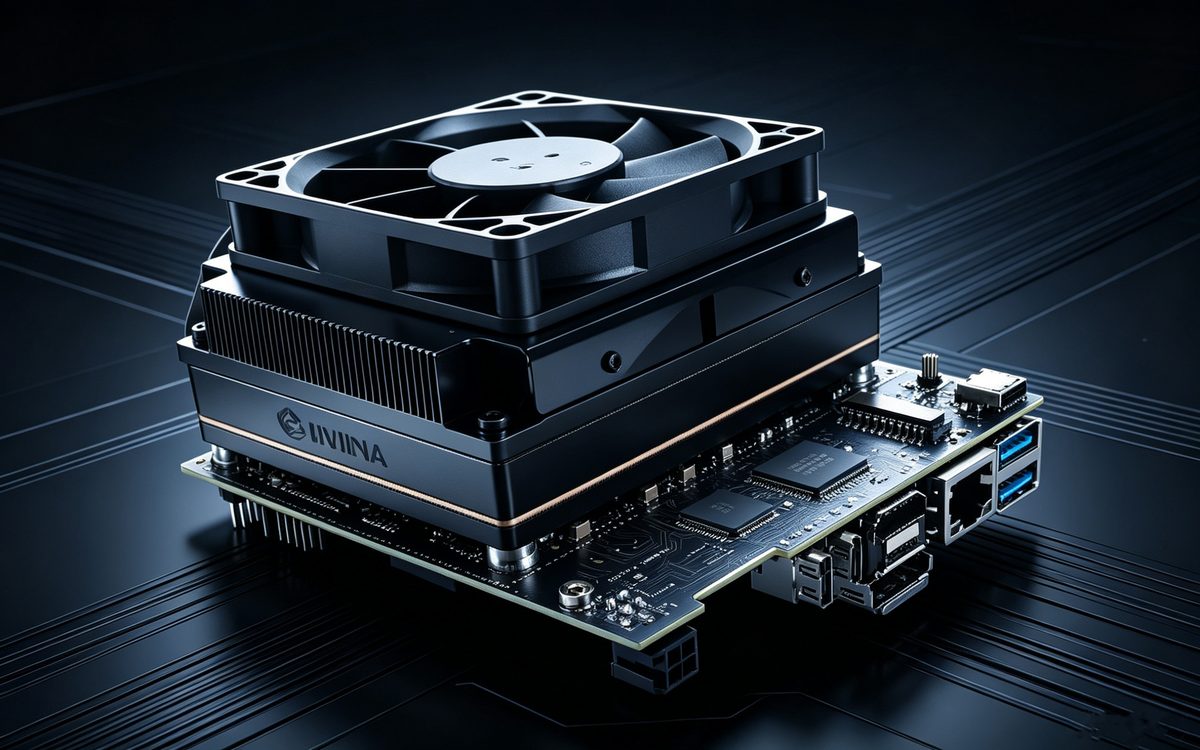

CTK-5000-A Jetson AGX Thor Developer Kit

Specifications

Module

NVIDIA Jetson T5000

AI performance

2070 TFLOPS (FP4, sparse)

GPU

2560-core NVIDIA Blackwell GPU with fifth-generation Tensor Cores; Multi-Instance GPU with 10 TPCs; up to 1.57 GHz

CPU

14-core Arm Neoverse-V3AE 64-bit; 1 MB L2 per core, 16 MB shared L3; up to 2.6 GHz

Vision accelerator

1× PVA v3

Memory

128 GB LPDDR5X, 256-bit, 273 GB/s

Storage

1 TB NVMe (M.2 Key M)

Video

2× NVENC, 2× NVDEC

Cameras

Holoscan Sensor Bridge cameras via QSFP; USB cameras

PCIe

M.2 Key M with x4 PCIe Gen5; M.2 Key E with x1 PCIe Gen5

USB

2× USB-A 3.2 Gen2; 2× USB-C 3.1

Networking

1× 5GbE RJ45; 1× QSFP28 (4× 25GbE)

Display

1× HDMI 2.0b; 1× DisplayPort 1.4a

Other I/O

2× 13-pin CAN; 2× 6-pin automation headers; JTAG; fan header (12 V PWM/tach); audio header; RTC battery

Power

40–130 W, configurable

Dimensions

123 × 108.5 × 75 mm (including heatsink)

Specifications may change without notice. Confirm the exact configuration with us before ordering.
