Haipob developer kits · Jetson AGX Orin

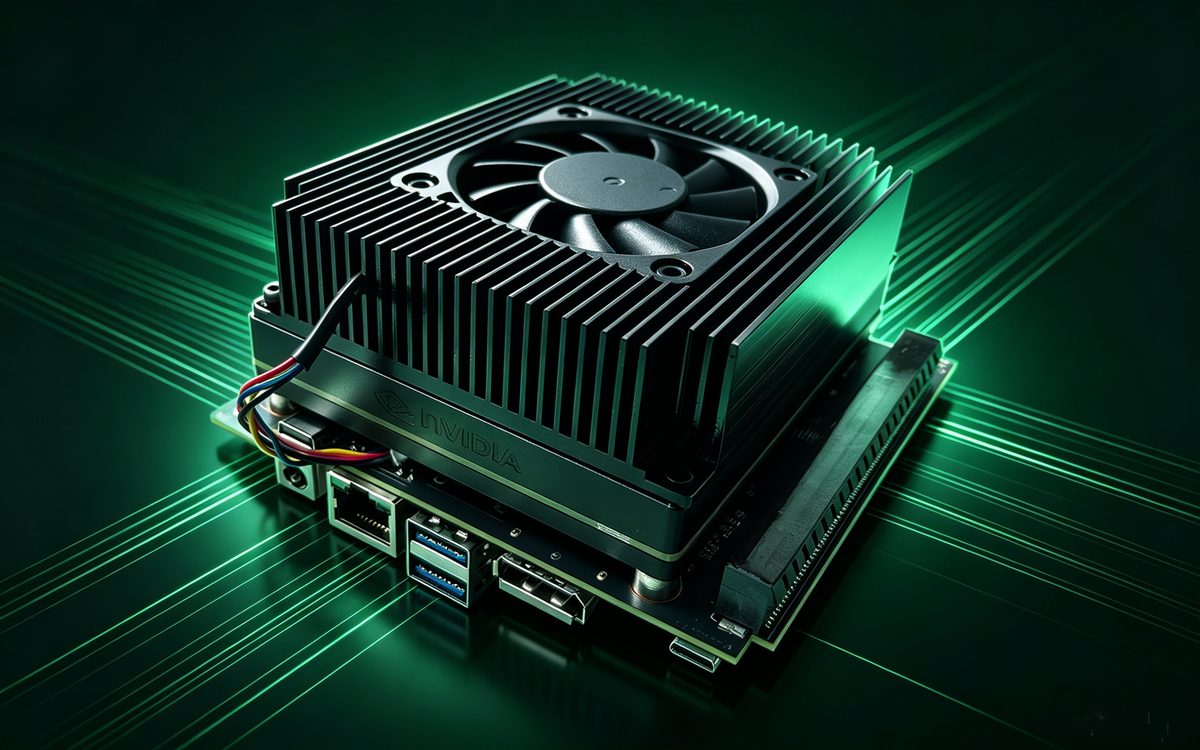

COK-800-A Jetson AGX Orin Developer Kit
A compact AGX Orin 64GB/32GB kit for multi-camera AI and edge inference.
- 275 / 200 TOPS
- Up to 64 GB LPDDR5
- 9–19 V DC input
Specifications
- Models
- COK-864-A (AGX Orin 64GB) / COK-832-A (AGX Orin 32GB)
- AI performance
- 275 / 200 TOPS
- GPU
- 2048-core NVIDIA Ampere GPU with 64 Tensor Cores; up to 1.3 GHz
- CPU
- 12-core Arm Cortex-A78AE v8.2 64-bit; 3 MB L2 + 6 MB L3; up to 2.2 GHz
- Accelerators
- 2× NVDLA v2 (up to 1.6 GHz); 1× PVA v2
- Memory
- 64 GB 256-bit LPDDR5, 204.8 GB/s
- Storage
- 64 GB eMMC 5.1
- Video encode
- 2× 4K60 / 4× 4K30 / 8× 1080p60 / 16× 1080p30 (H.265)
- Video decode
- 1× 8K30 / 3× 4K60 / 7× 4K30 / 11× 1080p60 / 22× 1080p30 (H.265)
- Cameras
- 16-lane MIPI CSI-2 connector
- PCIe
- x16 slot (x8 PCIe Gen4); M.2 Key M (x4 Gen4); M.2 Key E (x1 Gen4)
- USB
- 2× USB-C 3.2 Gen2; 2× USB-A 3.2 Gen2; 2× USB-A 3.2 Gen1; 1× Micro-B USB 2.0
- Networking
- RJ45, up to 10GbE
- Display
- 1× DisplayPort 1.4a (+MST)
- Other I/O
- 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO); 12-pin automation header; audio, JTAG, and fan headers; microSD
- Power
- 9–19 V DC; 15–60 W
- Dimensions
- 110 × 101 × 60 mm
Specifications may change without notice. Confirm the exact configuration with us before ordering.
