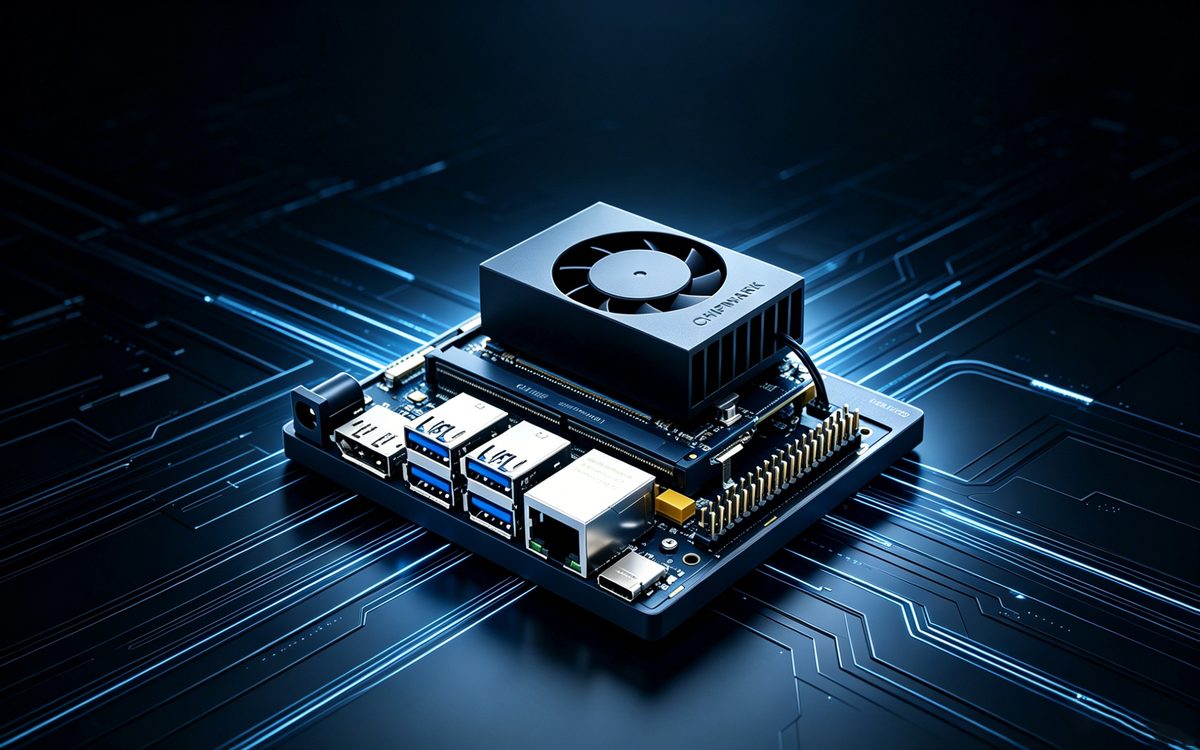

CDK-500 Jetson Orin NX / Orin Nano Developer Kit
A ready-to-run Orin NX and Orin Nano kit with module, SSD, cooling, and Wi-Fi included.
- Up to 157 TOPS
- 256 GB NVMe SSD
- Wi-Fi + Bluetooth
Specifications
- Models
- CDK-516 (Orin NX 16GB) / CDK-508 (Orin NX 8GB) / CDK-506 (Orin Nano 8GB) / CDK-504 (Orin Nano 4GB)
- AI performance
- 157 / 117 / 67 / 34 TOPS
- GPU
- 1024 or 512 NVIDIA CUDA cores; 32 or 16 Tensor Cores; up to 1.173 GHz
- CPU
- 8- or 6-core Arm Cortex-A78AE v8.2 64-bit; up to 2.0 GHz
- Accelerators
- Up to 2× NVDLA v2; 1× PVA v2
- Memory
- Up to 16 GB 128-bit LPDDR5, 102.4 GB/s
- Storage
- 256 GB M.2 NVMe SSD (up to 2 TB)
- Cameras
- 2× 22-pin MIPI CSI-2 (4-lane)
- USB
- 4× USB 3.2 Type-A; 1× USB 2.0 Type-C
- Networking
- 1× Gigabit Ethernet; Wi-Fi; Bluetooth
- Display
- 1× DisplayPort 1.4a (+MST)
- Other I/O
- 40-pin expansion header (UART, SPI, I2S, I2C, GPIO)
- Power
- 9–19 V DC; 10–40 W
- Dimensions
- 103 × 90.5 × 34 mm
Specifications may change without notice. Confirm the exact configuration with us before ordering.
