Jetson Thor

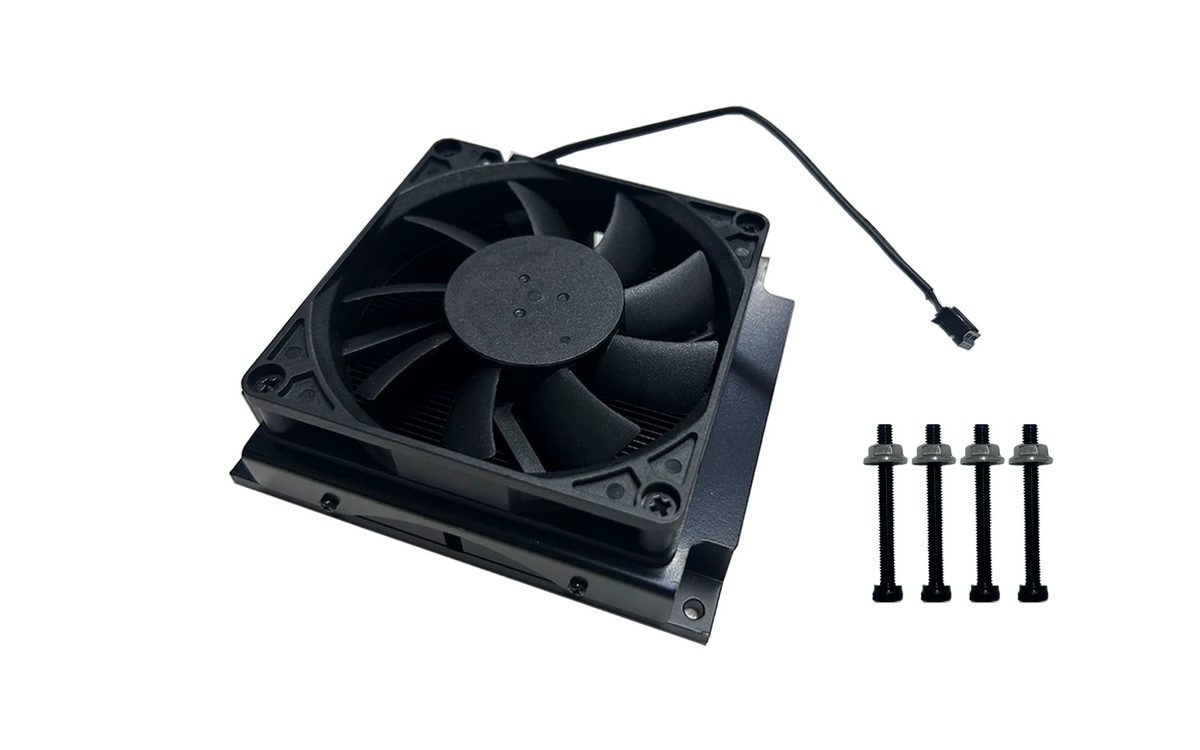

Jetson Thor Heatsink — Fan
An axial-fan heatsink for Jetson Thor modules; four mounting screws included.
- 100 × 89 × 33 mm
- 4000 RPM PWM fan
- Heat-pipe base
Heatsinks
Jetson Thor, AGX Orin & Orin NX Heatsinks
Module-matched active cooling for sustained full-load operation. Custom heights, mounting, and airflow are available on request.
Jetson Thor

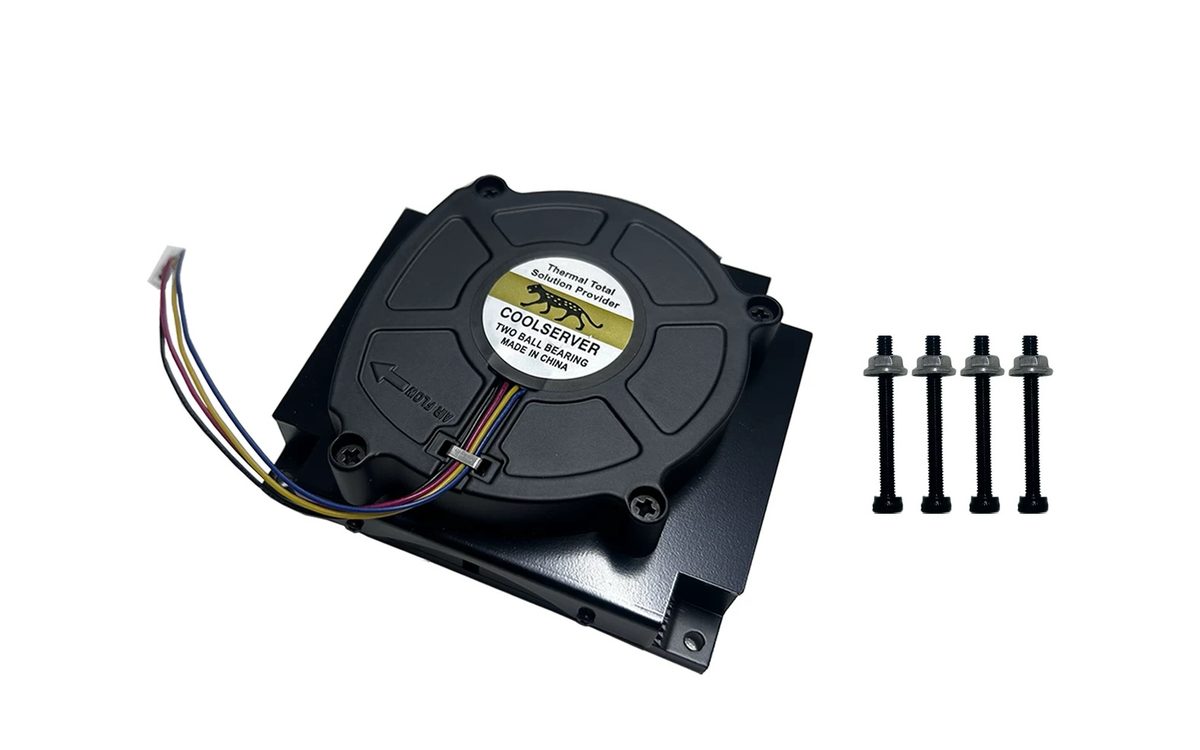

Jetson Thor Heatsink — Blower
A blower-style heatsink for Jetson Thor in enclosures that need directed airflow.
- 100 × 89 × 32.5 mm
- 6600 RPM blower
- Heat-pipe base
Jetson AGX Orin
Jetson AGX Orin Heatsink
A dedicated heatsink for Jetson AGX Orin and AGX Xavier modules and developer kits.
- AGX Orin & AGX Xavier
- Module-matched mounting
- Sustained full load
Jetson Orin NX / Nano
Jetson Orin NX / Orin Nano Heatsink
A dedicated heatsink for Jetson Orin NX and Orin Nano modules and developer kits.
- Orin NX & Orin Nano
- Module-matched mounting
- Sustained full load
Compare at a glance
| Product | Compatibility | Fan | Dimensions | Maximum speed |
|---|---|---|---|---|
| Jetson Thor Heatsink — Fan | NVIDIA Jetson Thor modules | 80 × 15 mm axial fan | 100 × 89 × 33 mm | 4000 RPM ±10 % |
| Jetson Thor Heatsink — Blower | NVIDIA Jetson Thor modules | 80 × 15 mm aluminum-frame blower | 100 × 89 × 32.5 mm | 6600 RPM ±10 % |
| Jetson AGX Orin Heatsink | Jetson AGX Orin / AGX Xavier modules and developer kits | — | — | — |
| Jetson Orin NX / Orin Nano Heatsink | Jetson Orin NX / Orin Nano modules and developer kits | — | — | — |
Not sure which one fits?
Tell us your cameras, interfaces, power budget, and enclosure. We'll recommend a kit, board, and cooling combination, or adapt one for your device.
