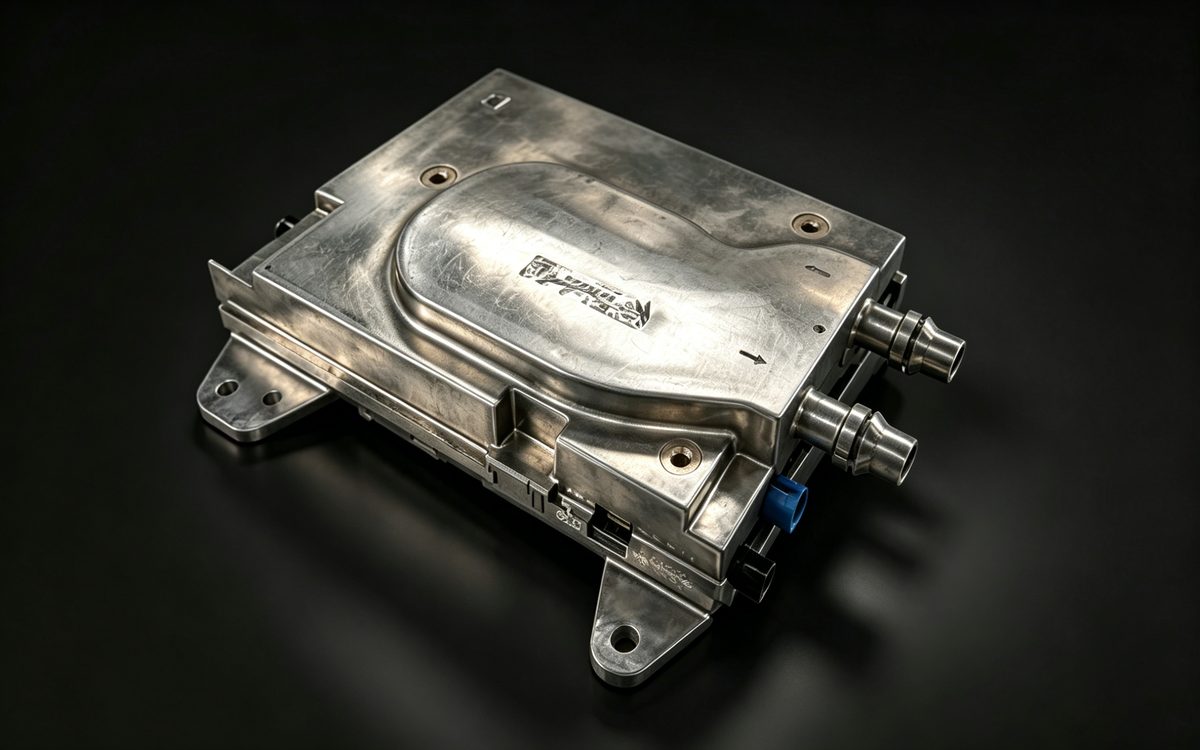

DRIVE Orin-X
CDX-801 Domain Controller
A water-cooled Orin-X domain controller for L2+ to L4 autonomous driving.
- 254 TOPS
- 10× GMSL2 · 10× CAN
- −40 to 85 °C
Domain controllers
Autonomous Driving Domain Controllers — DRIVE Orin-X & Jetson AGX Orin
Automotive- and industrial-grade compute platforms with multi-camera GMSL input, CAN, and wide-range vehicle power.

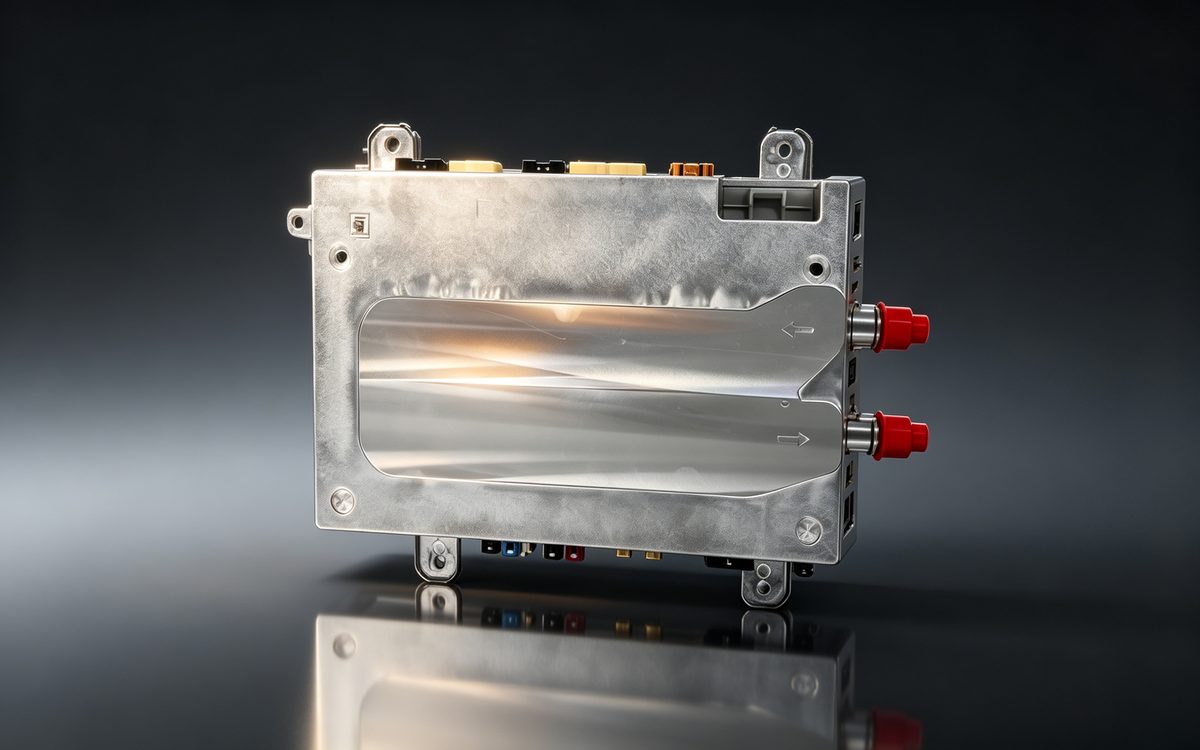

Dual DRIVE Orin-X
CDX-802 Domain Controller
A dual Orin-X controller for advanced autonomy and dense sensor fusion.
- 2× 254 TOPS
- 16× GMSL2 · 19× CAN
- 13 automotive Ethernet ports
L2+/L3 ADAS

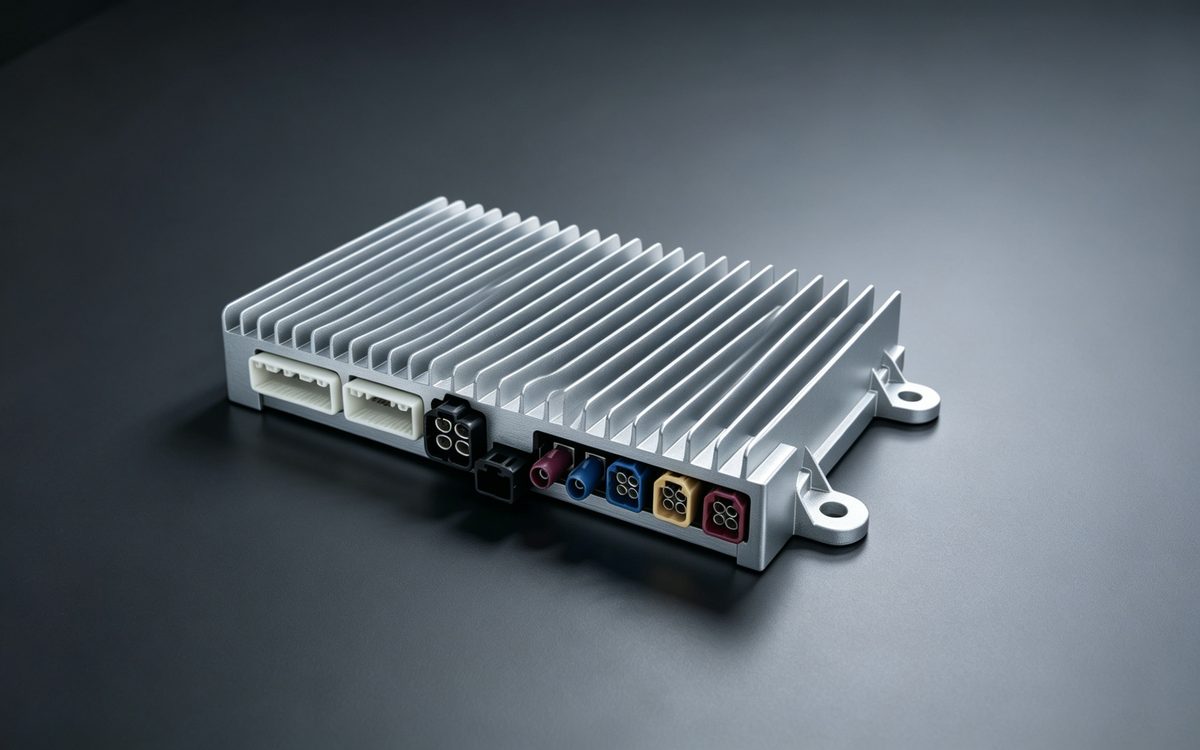

CDB-1000 Domain Controller
A low-power controller for city navigation-assisted driving and automated valet parking.
- 58 / 16 TOPS
- Up to 12× GMSL · 9× CAN
- 9–36 V DC

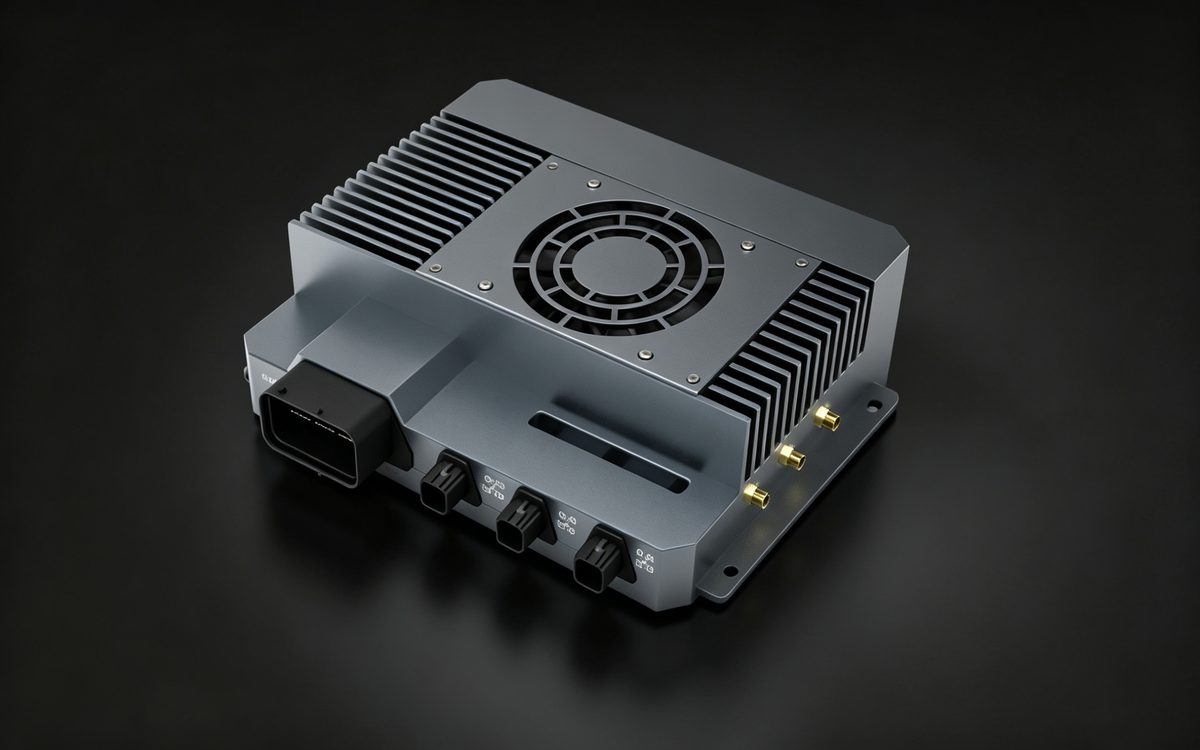

Jetson AGX Orin
CDH-800 Series Domain Controller
An industrial-grade AGX Orin controller for autonomous machines and roadside units.
- Up to 248 TOPS
- 12× GMSL · 7× CAN
- TSN support
Compare at a glance
| Product | AI performance | Cameras | CAN | Power input | Operating temperature |
|---|---|---|---|---|---|
| CDX-801 Domain Controller | 254 TOPS | 10× GMSL2 | 10× CAN | 9–16 V DC (KL30 and ACC) | −40 to 85 °C |
| CDX-802 Domain Controller | 2× 254 TOPS / 275 TOPS / 200 TOPS | 16× GMSL2 | 9 + 10× CAN | 9–16 V DC (KL30 and ACC) | −40 to 85 °C (Orin-X); −25 to 60 °C (AGX Orin) |
| CDB-1000 Domain Controller | 58 / 16 TOPS (INT8) | 12 / 8× GMSL | — | 9–36 V DC | −40 to 85 °C; 10–90 % humidity |
| CDH-800 Series Domain Controller | Up to 248 TOPS | Up to 12× GMSL | 7× CAN (3 from Orin, 4 from MCU) | 9–36 V DC | −40 to 65 °C |
Not sure which one fits?
Tell us your cameras, interfaces, power budget, and enclosure. We'll recommend a kit, board, and cooling combination, or adapt one for your device.
