Jetson AGX Orin
CAC-800 Series AGX Orin Carrier Board
An industrial carrier board for AGX Orin with six CSI cameras and an x8 PCIe slot.
- 6× CSI cameras
- x8 PCIe
- 9–36 V DC
Carrier boards
Jetson Orin Carrier Boards & GMSL Camera Expansion Boards
Carrier boards for Jetson AGX Orin, Orin NX, and Orin Nano modules, plus GMSL camera expansion boards. Interfaces can be adapted for OEM projects.
Jetson Orin NX / Nano

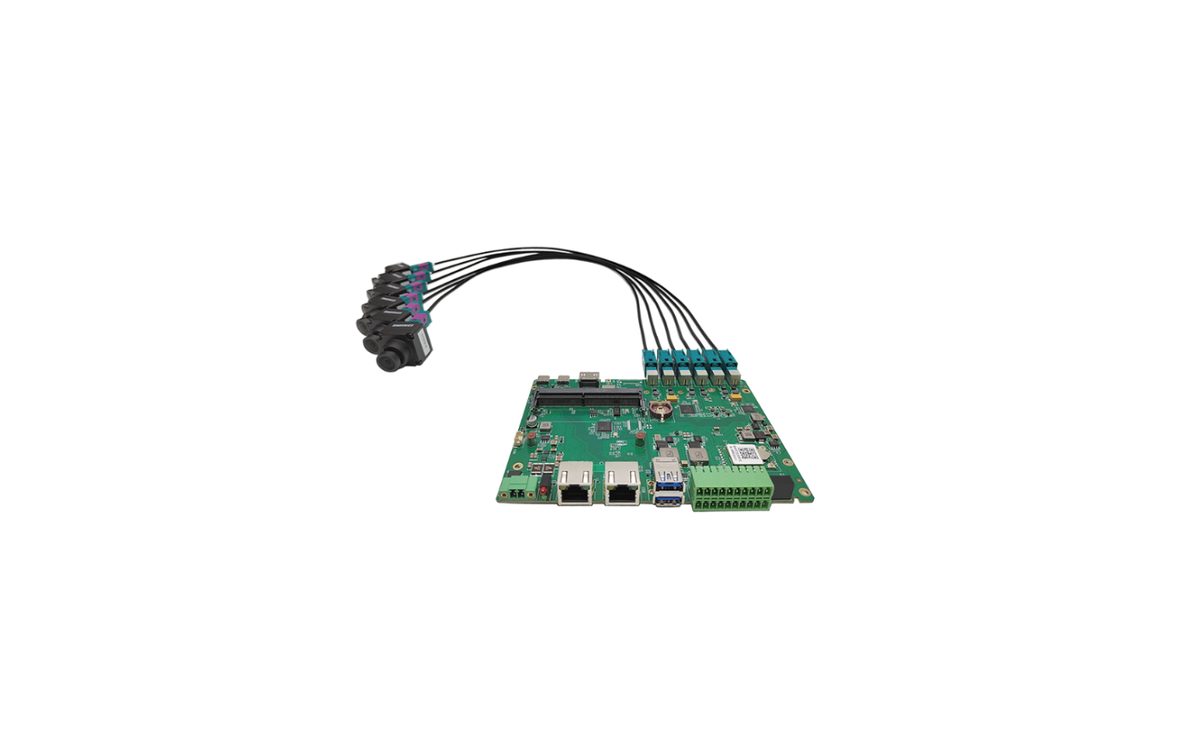

CNF-500 Series GMSL Carrier Board
A 6-camera GMSL carrier board for Orin NX and Orin Nano with 5G/4G, GPS, and CAN.
- 6× GMSL
- 5G/4G · Wi-Fi · GPS
- 2× CAN
Jetson Orin NX / Nano

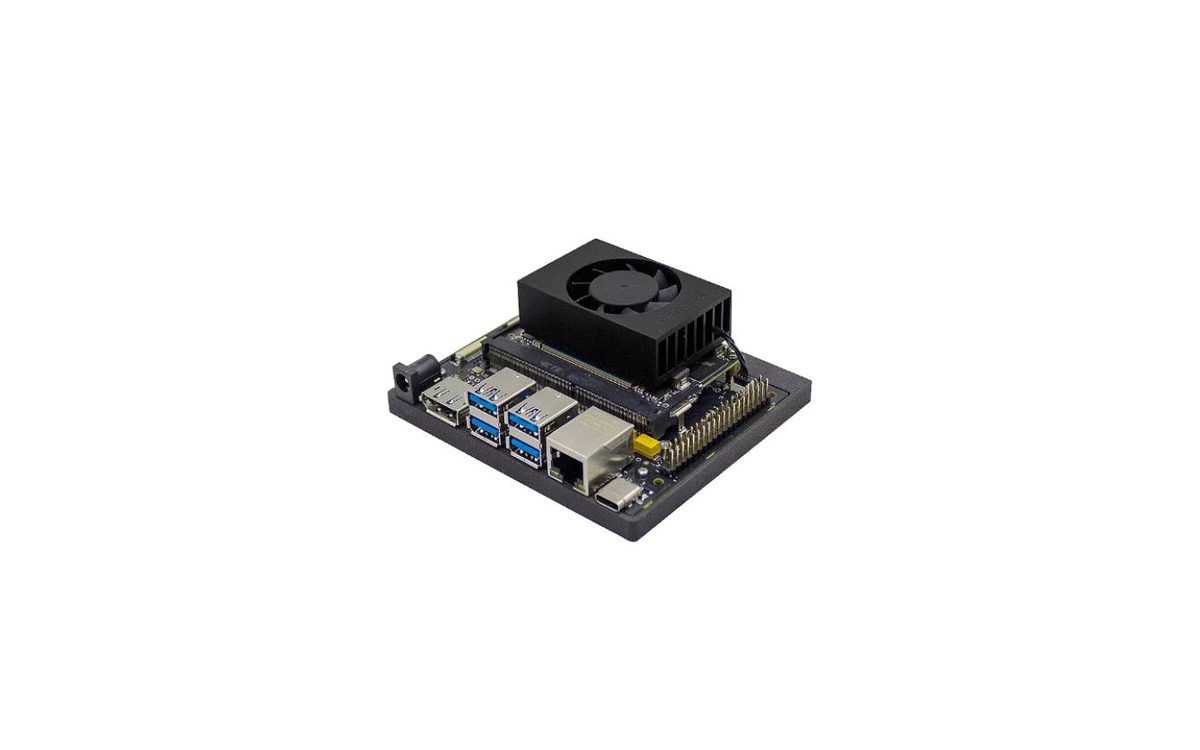

CNC-500 Series Carrier Board
A compact general-purpose Orin NX and Orin Nano carrier with DisplayPort and USB 3.2.
- DisplayPort
- 3× USB 3.2
- 9–19 V DC
Jetson Orin NX / Nano
Orin NX / Orin Nano Carrier Board
A dual-GbE carrier board for Orin NX and Orin Nano with a 12–24 V input.
- 2× GbE
- USB 3.2 Gen2
- 12–24 V DC
Jetson Orin NX / Xavier NX
Orin NX / Xavier NX Box Carrier Board
A carrier board and enclosure for compact Orin NX and Xavier NX AI boxes.
- Orin NX & Xavier NX
- 12–36 V input
- Enclosure-ready
GMSL expansion
CNF-E02 2-Channel GMSL Expansion Board
Adds two GMSL cameras to Orin NX and Orin Nano carrier boards.
- 2× GMSL
- PoC power
- −20 to 65 °C
GMSL expansion
CNF-E04 4-Channel GMSL Expansion Board
Adds four GMSL cameras to Orin NX and Orin Nano carrier boards.
- 4× GMSL
- PoC power
- −20 to 65 °C
GMSL expansion
CNF-E08 8-Channel GMSL Expansion Board
Adds eight GMSL cameras to the Jetson AGX Orin Developer Kit.
- 8× GMSL
- PoC power
- −20 to 85 °C
GMSL expansion
CNF-E16 16-Channel GMSL Expansion Board
Adds sixteen GMSL cameras to the Jetson AGX Orin Developer Kit.
- 16× GMSL
- PoC power
- −20 to 85 °C
Compare at a glance
| Product | Compatibility | Cameras | Networking | Power input |
|---|---|---|---|---|
| CAC-800 Series AGX Orin Carrier Board | CAC-864i (AGX Orin Industrial) / CAC-864 (AGX Orin 64GB) / CAC-832 (AGX Orin 32GB) | 6× CSI | 2× 100/1000 Mbps Ethernet | 9–36 V DC |
| CNF-500 Series GMSL Carrier Board | CNF-516 (Orin NX 16GB) / CNF-508 (Orin NX 8GB) / CNF-506 (Orin Nano 8GB) / CNF-504 (Orin Nano 4GB) | 6× GMSL | 2× 100/1000 Mbps Ethernet; 5G/4G support | — |
| CNC-500 Series Carrier Board | CNC-516 (Orin NX 16GB) / CNC-508 (Orin NX 8GB) / CNC-506 (Orin Nano 8GB) / CNC-504 (Orin Nano 4GB) | — | 1× 100/1000 Mbps Ethernet | 9–19 V DC |
| Orin NX / Orin Nano Carrier Board | NVIDIA Jetson Orin NX / Orin Nano | — | 2× RJ45 Gigabit Ethernet | 12–24 V DC (DC jack or Type-C) |
| Orin NX / Xavier NX Box Carrier Board | NVIDIA Jetson Orin NX / Xavier NX | — | — | 12–36 V DC |
| CNF-E02 2-Channel GMSL Expansion Board | Jetson Orin NX / Orin Nano carrier boards | 2× GMSL | — | — |
| CNF-E04 4-Channel GMSL Expansion Board | Jetson Orin NX / Orin Nano carrier boards | 4× GMSL | — | — |
| CNF-E08 8-Channel GMSL Expansion Board | Jetson AGX Orin Developer Kit | 8× GMSL | — | — |
| CNF-E16 16-Channel GMSL Expansion Board | Jetson AGX Orin Developer Kit | 16× GMSL | — | — |
Not sure which one fits?
Tell us your cameras, interfaces, power budget, and enclosure. We'll recommend a kit, board, and cooling combination, or adapt one for your device.
